Custom Carbon Monocoque Frame Manufacturing: What to Know Before You O

In today’s fast-evolving bicycle industry, high-end custom carbon frames have become a key differentiator for brands seeking to stand out in a competitive global market. Among them, monocoque carbon fiber frames—crafted using one-piece molding techniques—have emerged as a premium choice, delivering superior strength-to-weight ratios, aerodynamic performance, and a clean aesthetic that riders and retailers increasingly demand.

As rider expectations for personalization, performance, and innovation continue to rise, B2B clients—such as regional brands, e-commerce distributors, and private label builders—are placing greater emphasis on finding OEM partners that can offer flexible mold development, high-precision production, and reliable delivery timelines. In this context, choosing the right monocoque frame supplier can directly impact your product quality, brand image, and market response speed.

So before entering into an OEM partnership, what are the key technical factors, production steps, and communication details you need to understand? In this article, we’ll take a deep dive into the essentials of custom carbon monocoque frame development, offering practical insights and industry-based recommendations to help your brand succeed in the high-end frame segment.

⚙️What Is a Monocoque Carbon Fiber Frame?

As bicycle engineering continues to evolve, the monocoque carbon fiber frame has become a core structural choice for high-performance cycling applications. Through an integrated molding process, the main triangle of the frame is formed as a single structural unit, avoiding traditional bonding between individual tubes.

Compared to tube-to-tube carbon frames or hybrid constructions, monocoque frames utilize a continuous carbon layup process, enhancing structural integrity, stiffness control, and lightweight performance. This also provides greater design flexibility for aerodynamics, internal routing, and integration features—a decisive advantage in today’s competitive mid-to-high-end bicycle markets.

🔍 Definition and Advantages of the Monocoque Structure

The term monocoque comes from the French word meaning “single shell.” In the context of carbon bike frames, it refers to a manufacturing process where the frame is molded as a single piece using a dedicated mold, rather than assembling individual carbon tubes with adhesives.

This approach offers several clear advantages:

Greater structural continuity: Load paths follow a smoother flow, reducing stress concentrations at joints.
Enhanced stiffness and strength: Particularly in the bottom bracket, down tube, and head tube junctions.
Tighter manufacturing tolerances: Avoids variation from manual bonding or inconsistent alignment.
Improved aerodynamic profile: Seamless construction enables cleaner lines and lower drag coefficients.
More integrated design possibilities: Features like internal cable routing, hidden storage compartments, and e-bike system mounts can be built directly into the mold.

These benefits make the monocoque process the ideal method for crafting high-performance carbon fiber frames, especially for road racing, TT, gravel, and enduro full suspension platforms.

🎯 Why Premium Brands Prefer Monocoque Carbon Bike Frames

In the premium bicycle market, most top-tier brands (such as Specialized, Trek, Cervélo, and Canyon) favor the monocoque structure for their flagship models. This is not just about modern manufacturing—it’s about performance, precision, and aesthetics:

Lighter weight: With fewer overlaps and joint reinforcements, the optimized layup reduces overall frame weight by 10–15%, which is critical for climbing bikes and race builds.
Higher stiffness and pedaling efficiency: The continuous fiber structure improves stiffness at the bottom bracket and downtube, reducing power loss and increasing responsiveness—essential for competitive cyclists.
Superior structural consistency: Dimensional accuracy and strength distribution are more uniform, ensuring every frame meets the same high-performance standard.
Premium appearance and branding: Seamless surfaces are ideal for custom paint, gradient finishes, metallic decals, and other visual enhancements that elevate brand identity and market appeal.

In addition, monocoque technology supports modern integrated frame designs, enabling manufacturers to incorporate features like internal cable systems, integrated cockpit setups, and downtube storage. This is the foundation of the next generation of integrated carbon frame systems.

For OEM clients looking to build a distinctive, high-end product line, investing in a custom monocoque carbon frame is more than just a technical decision—it’s a strategic move toward global market competitiveness and brand differentiation.

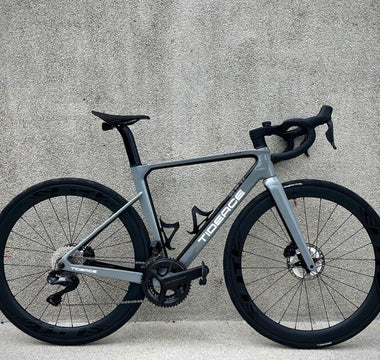

all road carbon bicycle

🏭 Monocoque One-Piece Molding Process Explained

As a core technology in high-end carbon bike frame manufacturing, the monocoque molding process combines advanced carbon layup techniques, vacuum compression systems, and high-temperature curing protocols to produce frames with exceptional strength, consistency, and lightweight performance.

This method is widely used in the production of top-tier road frames, full suspension MTB structures, and integrated TT platforms. Below, we break down the monocoque process from three technical angles and compare it with other common frame construction methods.

🧵 Internal Carbon Layup & Vacuum Compression

At the heart of monocoque manufacturing is a precise carbon layup process. Engineers use pre-preg carbon fiber sheets—such as T700, T800, or M40 fibers—layered within the mold at specific angles (e.g., 0°, 45°, 90°) based on structural needs.

Key goals of this stage include:

Optimizing directional strength: Different fiber orientations enhance torsional stiffness and vertical compliance where needed.
Zoned thickness control: Heavier layering in high-stress areas like the bottom bracket or head tube, lighter layering in seatstays or top tube for weight savings.
Eliminating air bubbles and wrinkles: Aided by vacuum bagging and internal bladder molding, excess resin and trapped air are removed for better density and surface quality.

This foundational layer setup ensures a high-performance monocoque bicycle structure with predictable stress distribution, weight balance, and dimensional accuracy.

🔥High-Temperature Molding: The Key to Frame Integrity

Once layup is complete, the mold is sealed and transferred into a curing system. This high-temperature, high-pressure process is what determines the final frame’s strength, precision, and longevity.

Key elements of this stage:

Thermal curing: Typically conducted between 120°C to 150°C to fully cross-link the resin matrix.
Internal pressurization: Using bladders or hydraulic compression at 6–10 bar to press the layup evenly into the mold.
Time control: Curing cycles run for 60–90 minutes and must be tightly managed to avoid under- or over-curing.

The result of this step is a frame that offers:

Seamless structural integration: No joints or glued seams means fewer stress concentrations.
Exceptional dimensional stability: Ideal for complex geometries, internal cable routing, or aerodynamic shaping.
Cleaner surfaces: Monocoque molds yield sleek lines that are perfect for post-processing, custom paint, or premium decals.

This is why leading brands are willing to invest in custom carbon frame tooling—it defines their product quality and long-term competitiveness.

🧾 Process Comparison – Monocoque vs. Tube-to-Tube vs. Lugged Frames

To better illustrate how monocoque compares to other methods, here’s a breakdown of three popular carbon frame construction types:

Feature	Monocoque One-Piece	Tube-to-Tube Bonding	Lugged Construction
Construction Method	Molded as one integrated structure	Tubes individually bonded by hand	Tubes inserted into pre-made lugs
Structural Integrity	Excellent (no bonding seams)	Moderate (glue points may be weaker)	Weaker (load on joints)
Stiffness & Strength	High (continuous fibers)	Varies by skill and layout	Lower due to joint flex
Weight Control	Best (minimal overlap)	Medium	Heavier (more reinforcements)
Aesthetics	Cleanest (seamless)	Moderate (visible joints)	Limited design flexibility
Manufacturing Precision	Mold-defined (highly consistent)	Depends on manual work	Inconsistent across units
Best Use Case	Pro-level performance / custom branding	Club-level / small batch	Entry-level / retro frames

Clearly, monocoque construction offers superior mechanical performance, aesthetic appeal, and production consistency. It’s also the preferred platform for integrating modern features like internal cable routing, integrated cockpits, and in-frame storage modules—a foundation for next-gen carbon frame systems.

📐 Key Specifications When Customizing a Monocoque Carbon Bike Frame

Material Grades – How to Choose Between T700, T800, and T1000

When selecting a monocoque carbon bike frame, material grade is a foundational decision. The most common choices—T700, T800, and T1000—each have distinct mechanical characteristics.

T700 carbon fiber is widely used for its excellent strength-to-weight ratio and affordability. It provides sufficient stiffness for general performance road bikes and entry-level gravel builds.
T800 carbon fiber offers a higher modulus and tensile strength than T700, making it ideal for riders seeking enhanced rigidity and lower weight without significantly increasing costs.
T1000 carbon fiber is primarily reserved for ultra-lightweight race frames, where every gram counts and frame stiffness and responsiveness are mission-critical.

When customizing a high-end carbon bike frame, it’s crucial to align material selection with riding style:

T700 for endurance and daily training
T800 for racing or lightweight builds
T1000 for elite-level performance

Geometry Design – Race vs Endurance vs Gravel Frames

One of the primary advantages of monocoque frame construction is the ability to fully customize the frame geometry to suit specific ride disciplines.

Race geometry focuses on aerodynamics and aggressive positioning, with a steeper head tube angle, shorter wheelbase, and lower stack height—perfect for criteriums and competitive road cycling.
Endurance geometry emphasizes comfort over long distances, offering a more upright position, increased stack, and longer wheelbase for stability.
Gravel bike geometry blends the two: a slacker head tube, lower bottom bracket, and longer chainstays to accommodate wider tires and enhance off-road stability.

Choosing the correct road bike geometry ensures better rider ergonomics, optimized handling, and fatigue reduction over time.

Compatibility Modules – Bottom Brackets, Head Tubes, Dropouts & Cable Routing

When designing a custom carbon monocoque frame, selecting compatible component standards is critical for ensuring drivetrain and cockpit integration.

Bottom Brackets: Press-fit standards like BB86, BB92, and T47 threaded bottom brackets offer different installation methods and stiffness properties. T47 is increasingly favored for its serviceability and creak resistance.
Head Tube Standards: Tapered head tubes (1-1/8” to 1-1/2”) are now standard on most performance bikes, ensuring front-end stiffness and fork compatibility.
Dropouts: Choosing between traditional dropouts and UDH (Universal Derailleur Hanger) is essential for gravel and MTB compatibility, especially with SRAM Transmission.
Internal Cable Routing: Modern frames often feature fully internal cable routing for a clean aesthetic and improved aerodynamics. Consider whether you need routing for mechanical, electronic (Di2, EPS), or wireless systems.

Matching these compatibility options ensures your custom monocoque carbon frame will work seamlessly with both current and future component ecosystems.

🔧OEM Collaboration Workflow & Production Capability Assessment

How Clients Submit Designs or Cooperation Intent

For brands seeking to launch a custom carbon fiber bike frame OEM project, the collaboration begins with clear communication of design intent and technical requirements. Clients typically provide:

3D CAD drawings or bike frame renderings
Reference prototype frames or market benchmarks
Target rider segment (e.g., road racing, gravel touring, XC MTB)
Projected timeline and quantity estimate

An experienced OEM manufacturer will assist in refining your geometry, integrating structural reinforcement zones, and ensuring monocoque carbon bike frame manufacturability. A transparent design brief ensures seamless alignment between product vision and production feasibility.

Mold Investment and Minimum Order Quantity (MOQ)

One of the first considerations in custom bike frame manufacturing is mold investment. For a monocoque frame, a one-piece mold set is essential to maintain full structural integrity, requiring high upfront tooling cost. The cost varies depending on frame type, size range, and complexity, but usually starts from:

Frame Type	Estimated Mold Cost	MOQ
Road/Gravel	$6,000–$9,000	30–50 units
MTB/Enduro	$8,000–$12,000	50+ units

Most OEM partners operate on a cost amortization model, where mold fees can be reduced or offset if the order volume exceeds long-term thresholds. Transparent MOQ policies help balance cost-efficiency and business scalability.

🎨 Brand Customization Services: Full-Process Support from Frame Structure to Paint

With growing market demand for differentiation and personalization, modern carbon fiber frame manufacturing goes beyond just structural design. Comprehensive brand customization services have become essential for enhancing brand competitiveness. Whether it’s flexible low-volume production or personalized visual design, a professional OEM partner provides one-stop solutions covering design, manufacturing, and coating, ensuring unique and high-quality products.

🔄 Flexible Low-Volume Production Support

To meet brands’ needs for market testing, new launches, or limited editions, many premium OEM factories offer small-batch MOQ starting from 10 units and fast prototyping services. Key benefits include:

Reduced inventory risk — ideal for startups and niche markets
Rapid market response — shorter sample validation and iteration cycles
Flexible adjustments in design and color schemes with scalability options

Advanced production lines and mature supply chains ensure small orders maintain consistent quality standards.

🎨Personalized Visual Design and Custom Coating Process

In brand customization, a distinctive Visual Identity System (VIS) is crucial for market recognition. Leading OEM partners typically operate professional in-house paint workshops supporting various coating techniques, including:

Gradient colors, matte and glossy finishes
Advanced effects like heat transfer decals, foil stamping, embossed logos
Protective UV coatings to enhance paint durability

Clients can upload their proprietary color codes, logos, and artwork files via online or offline channels, collaborating closely with factory design teams to finalize samples and ensure the final product perfectly aligns with brand image requirements.

🌐 Collaboration Cases and Industry Trend Analysis

With the continuous advancement of monocoque carbon fiber frame technology, more brands are leveraging OEM/ODM partnerships to upgrade their products and differentiate themselves in the highly competitive global bicycle market. A well-defined collaboration model combined with an accurate understanding of industry trends is essential for sustained brand growth.

🔗 From OEM to ODM: The Path to Brand Upgrading

Traditional OEM mainly focuses on basic manufacturing and producing according to designs provided by brands, with limited involvement in R&D. As market demands evolve, an increasing number of clients choose to shift towards an ODM collaboration model, harnessing factory expertise in research and development to realize full-chain services from product design innovation to manufacturing optimization.

Typical upgrade paths include:

Design empowerment: OEM factories offer professional geometry optimization and carbon layup design advice, helping brands improve product performance and differentiation.
Brand customization: From frame structure, material selection, and compatibility standards to personalized paint and logo application, creating unique brand identities.
Technical co-development: Jointly developing specialized frames for emerging segments such as endurance road bikes, all-road gravel, and Enduro mountain bikes.

These collaboration cases demonstrate how the ODM model lowers R&D barriers for brands while enabling quick adaptation to market trends and building core competitiveness.

🌍 Rising Global Demand for Monocoque Bicycle Frames

In recent years, monocoque carbon fiber frames have gained rapid popularity across regions including Europe, North America, Southeast Asia, and Latin America, thanks to their lightweight, high stiffness, and integrated design advantages. Market research highlights:

European and North American markets remain the largest consumers for high-end road, racing, and professional MTB frames, driven by premiumization and demand for custom performance frames.
Southeast Asia experiences growth fueled by increasing cycling culture and urban commuting needs, with brands focusing more on mid-to-high-end monocoque frames balancing lightness and comfort.
Latin America is rapidly expanding its cycling base, with strong interest in durable and versatile all-terrain models driving growth in gravel and Enduro categories.

This trend also promotes upgrades along the value chain, including mold development, composite material supply, and coating technologies, collectively pushing the industry towards higher quality and greater added value.

Quality Control and Mechanical Testing Standards

Quality assurance is the foundation of premium OEM partnerships. Reputable carbon frame manufacturers adhere to international testing protocols such as:

ISO 4210: Safety requirements for bicycles
EN 14766: Fatigue and static load testing
UCI compliance (for racing bicycle homologation)

Each frame typically undergoes:

Fatigue testing: Simulates long-term riding stress
Impact testing: Evaluates crash resistance
Torsional stiffness test: Measures lateral rigidity for high-speed performance

In addition, visual inspection, non-destructive testing (NDT), and carbon layup audits are standard to ensure consistent product integrity.

✅Conclusion: Why Choosing Custom Monocoque Carbon Fiber Frames Is a Key Step for Your Brand’s Long-Term Growth

In today’s highly competitive bicycle market, opting for a custom monocoque carbon fiber frame is not only a symbol of superior performance and quality but also a strategic move for brands seeking differentiation and sustainable growth. By leveraging advanced monocoque manufacturing technology, brands can:

Achieve the perfect balance of lightweight design and high stiffness, enhancing rider experience and product competitiveness
Offer fully personalized geometry and aesthetic customization tailored to target customer needs
Partner with professional OEM/ODM manufacturers to quickly respond to market trends and accelerate product development cycles
Ensure product quality that meets international EN, ISO, and other testing standards, earning consumer trust and brand reputation

Choosing custom monocoque carbon fiber frames is a crucial step toward entering the premium market and building your brand’s core competitiveness. We warmly invite brand owners, distributors, and bike shops to collaborate with us to create a more competitive product lineup and achieve mutual success.
