Introduction: Geometry Is More Than Just Angles
When it comes to choosing the right all road bicycle, most riders are drawn to frame material, tire clearance, or component groups. Yet one of the most critical—and often overlooked—factors that determines how a bike rides is its geometry.
Geometry isn't just about numbers on a chart; it's the blueprint that shapes your riding experience. From the steepness of the head tube to the length of the chainstays, each measurement affects how your bike handles, climbs, descends, and responds to different surfaces.
In 2025, as the all road bicycle category continues to surge in popularity—offering a balance between speed, comfort, and versatility—understanding bike geometry is no longer just for engineers or pros. Whether you’re commuting to work, exploring gravel paths on weekends, or chasing centuries, geometry determines how the bike feels beneath you.
This guide will wlk you through everything you need to know about all road bike geometry—from decoding geometry charts to understanding how different setups match different riding styles. We’ll also examine a real-world example, the Tideace R301D, to show how modern geometry brings performance and comfort together.
What Is All Road Bike Geometry?
Defining the Category
An all road bicycle blends the speed and efficiency of a road bike with the comfort and versatility of a gravel or endurance bike. It’s designed to tackle smooth tarmac, broken pavement, hard-packed gravel, and even light dirt trails—without compromising the overall road feel.
The geometry of an all-road bike reflects this hybrid intention:
-
More relaxed than a race road bike, for improved comfort on long rides.
-
More aggressive than a gravel bike, for faster handling on pavement.
-
Capable of wider tires and frame storage, while keeping the ride efficient.
In short, all road geometry is about balance: speed meets stability, comfort meets performance.
How It Differs from Other Categories
Bike Type Key Geometry Traits Purpose Road Race Bike Steep angles, low stack, short chainstays Speed, aggressive handling Gravel Bike Slacker angles, long wheelbase, high tire clearance Stability, mixed surfaces All Road Bike Moderate angles, balanced stack/reach, 32–38C tires Versatile, all-surface riding Endurance Road Upright stack, comfort geometry, stable front end Long-distance pavement riding Geometry is the DNA of a bike—it defines how your body interacts with the machine and the terrain.
In the following sections, we’ll break down the key geometry terms and what they mean for your ride. Whether you’re comparing frames online or test-riding your next build, these insights will help you find the ideal all-road fit.
Key Geometry Terms Explained: How They Shape Your Ride
Understanding how your all road bicycle feels and performs begins with a few fundamental geometry terms. These numbers, typically listed in a frame geometry chart, each influence the bike's behavior in unique ways—from how it corners to how your body fits the frame.
Let’s break down the key terms and what they mean for real-world riding.
1. Stack and Reach: The Foundation of Fit
-
Stack is the vertical distance from the center of the bottom bracket to the top of the head tube.
-
Reach is the horizontal distance from the bottom bracket to the same top point of the head tube.
These two numbers are critical for sizing and comfort. While traditional sizing (S, M, L) offers a rough guide, stack and reach define how upright or stretched out you’ll feel on the bike.
📌 Why It Matters for All Road Bikes
-
Higher stack provides a more upright, relaxed position, ideal for long rides and rough surfaces.
-
Moderate reach ensures control and efficient power transfer without excessive forward lean.
- Pro Tip: Look for a stack-to-reach ratio between 1.5–1.6 for a balanced all-road position. This ratio allows long-distance comfort without sacrificing performance.
2. Head Tube Angle: Steering and Stability
The head tube angle (HTA) is the angle between the front fork and the ground. It affects how quickly the bike turns and how stable it feels at speed.
-
Steeper angles (73°–74°) = Quick, responsive steering (common in race bikes).
-
Slacker angles (70°–72°) = More stable, controlled steering (preferred for mixed surfaces).
📌 For All Road Bikes:
Most models use an HTA of 71.5° to 72.5°. This gives you nimble cornering on pavement, yet enough stability for gravel or descending on rougher roads.
3. Seat Tube Angle: Pedaling Efficiency
The seat tube angle (STA) measures how upright or laid-back your saddle position is relative to the bottom bracket.
-
Steeper angles (74°+) place your hips more forward, great for aggressive pedaling.
-
Slacker angles (72°–73°) support a relaxed, endurance-style ride.
In all-road bicycle design, a moderate seat tube angle around 73° is most common, offering a blend of comfort and efficiency for long distances and variable terrain.
4. Chainstay Length: Balance and Rear-End Stability
The chainstay is the part of the frame connecting the bottom bracket to the rear axle. Its length influences rear wheel placement, handling, and tire clearance.
-
Short chainstays (<415mm) = Agile feel, better acceleration.
-
Long chainstays (>430mm) = Smoother ride, better loaded stability, more tire clearance.
📌 In All Road Bikes:
Expect 415–435mm chainstays to accommodate wider tires (32C–38C), rear-end stability, and mixed-terrain handling.
5. Bottom Bracket Drop: Stability and Cornering Feel
The BB drop is how far the bottom bracket sits below the wheel axles. A lower BB improves cornering stability but may increase the risk of pedal strike on rough terrain.
-
Lower BB (70–75mm drop) = Lower center of gravity, better handling.
-
Higher BB (<68mm drop) = More clearance, but less stability.
📌 For All Road Use:
A 70–75mm BB drop hits the sweet spot—low enough for confident handling on paved roads and stable enough for light gravel.
6. Trail: The Secret Sauce of Handling
Often overlooked, trail is a complex value derived from fork rake and head tube angle. It influences how the front wheel tracks and how the bike feels in corners.
-
Short trail (<58mm) = Fast, twitchy steering (road race feel).
-
Long trail (>65mm) = Slow but highly stable handling (gravel/touring feel).
📌 All Road Ideal:
Most all road bicycles have a trail of 60–66mm, giving you balanced handling on both tarmac and trail.
📊 Geometry Summary Table for All-Road Bikes
| Parameter | All-Road Typical Range | Purpose |
|---|---|---|
| Stack / Reach | 1.5 – 1.6 (ratio) | Upright comfort + efficient posture |
| Head Tube Angle | 71.5° – 72.5° | Balanced steering response |
| Seat Tube Angle | 72.5° – 73.5° | All-day pedaling efficiency |
| Chainstay Length | 415mm – 435mm | Stable rear feel + tire clearance |
| BB Drop | 70mm – 75mm | Lower center of gravity, more stability |
| Trail | 60mm – 66mm | Confident, predictable handling |
How Geometry Affects Real-World Riding
Knowing the geometry specs of your all road bicycle is just the start. To truly make an informed decision, you need to understand how these numbers translate to real-world performance—on city streets, gravel paths, or during long-distance endurance rides.
Here’s how different geometry setups affect actual riding styles.
1. For Commuters and Urban Riders
If you use your bike for daily transportation—navigating traffic, bike lanes, and occasional poor road surfaces—comfort and control are paramount.
✅ Ideal Geometry:
-
High Stack → Upright position reduces back and neck strain
-
Short Reach → Easier handling in tight city spaces
-
Moderate Trail (62–65mm) → Predictable low-speed control
-
Chainstay: ~425mm → Balance between agility and smoothness
Why It Works: This geometry supports frequent stop-and-go riding, better visibility, and all-day comfort in regular clothes or backpacks.
2. For Weekend Explorers and Mixed Terrain Riders
If you plan to switch between paved roads, country lanes, and mild gravel without changing bikes, you need a geometry that does it all—without leaning too far in one direction.
✅ Ideal Geometry:
-
Moderate Stack and Reach ratio (1.5–1.6) → Balanced posture
-
Head Angle: ~72° → Quick enough for paved turns, stable for loose surfaces
-
Trail: ~63–66mm → Neutral handling across terrains
-
BB Drop: ~72mm → Slightly lower for high-speed stability
-
Why It Works: These numbers offer a sweet spot between road responsiveness and gravel confidence—ideal for riders who want “one bike to do everything.”
3. For Long-Distance or Light Touring Riders
Long-distance cyclists and light touring riders prioritize efficiency, load balance, and reduced fatigue. These rides may stretch into full days or back-to-back centuries.
✅ Ideal Geometry:
-
Higher Stack + Neutral Reach → Upright enough to reduce fatigue
-
Slacker Head Angle (71.5°) → Smooth and forgiving over long hours
-
Longer Chainstay (430–435mm) → Rear load stability, smooth rolling
-
Lower BB (73–75mm drop) → Keeps bike planted on descents
-
Why It Works: The bike feels planted and smooth with front and rear loads, allowing for a stable, predictable ride even after 100km+ in the saddle.
4. Geometry Fit Tips Based on Rider Goals
| Rider Type | Recommended Focus | Geometry Traits |
|---|---|---|
| Urban Commuter | Comfort & Visibility | High stack, short reach, moderate trail |
| Mixed-Ride Cyclist | Versatility & Adaptability | Balanced stack/reach, 72° HTA, ~72mm BB |
| Endurance Rider | Stability & Long-Hour Comfort | Slacker HTA, longer stays, lower BB |
| Speed-Focused Rider | Responsiveness & Aerodynamics | Lower stack, longer reach, steeper HTA |

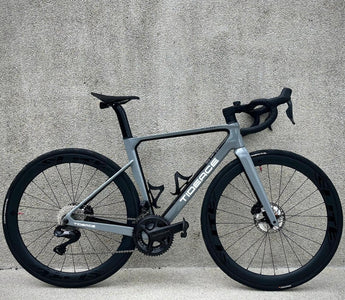

Real-World Geometry Example: Tideace R301D Frame Analysis
To better understand how geometry translates into ride characteristics, let’s take a closer look at a modern example: the Tideace R301D, a full carbon all road bicycle frame designed for versatility, comfort, and performance.
The R301D is engineered for riders who demand one bike for everything—from daily commutes to long-distance road adventures, and even light gravel exploration.
Key Features of the Tideace R301D
-
Material: Toray T800 carbon fiber
-
Tire Clearance: Up to 700×38C
-
Storage: Integrated downtube storage for tools and essentials
-
Brake Type: Flat-mount disc
-
Axles: 12×100mm (front), 12×142mm (rear)
-
Bottom Bracket: PF86.5 Press-fit
-
Routing: Fully internal cable routing
These specs reflect the R301D’s commitment to the all-road ethos: efficient, clean, adaptable, and ready for everything from asphalt to forest roads.
Tideace R301D Geometry Chart (Size M as example)
| Geometry Parameter | Size M |
|---|---|
| Stack | 560 mm |
| Reach | 382 mm |
| Head Tube Angle | 72° |
| Seat Tube Angle | 73° |
| Chainstay Length | 425 mm |
| BB Drop | 72 mm |
| Wheelbase | 1010 mm |
| Fork Offset | 50 mm |
📌 Stack/Reach Ratio: 1.47 — a well-balanced geometry that supports both endurance and performance positions
Why the R301D Geometry Works for All-Road Use
-
Balanced HTA (72°) offers stable handling on uneven pavement while keeping steering agile enough for road sections
-
Longer chainstays (425mm) improve rear-end smoothness and increase tire & fender clearance
-
72mm BB drop lowers the rider’s center of gravity for confident high-speed cornering and better load handling
-
Stack and reach dimensions offer an endurance-style upright posture, but can be adapted for sportier riding with shorter stems or drop bars
Combined, these features make the Tideace R301D a great choice for riders who want:
-
Stability on broken roads or gravel
-
Comfort for long rides (with room for larger tires and relaxed geometry)
-
Integrated storage for tools, snacks, or minimal bikepacking
Frame Size Recommendation (Based on Height)
| Rider Height | Recommended Size | Stack (mm) | Reach (mm) |
|---|---|---|---|
| 160–170 cm | Size S | ~545 | ~370 |
| 170–178 cm | Size M | ~560 | ~382 |
| 178–185 cm | Size L | ~580 | ~395 |
| 185+ cm | Size XL | ~600 | ~405 |
📌 For riders between sizes, consider your flexibility and intended use. Prefer endurance comfort? Size up. Want a sportier fit? Size down slightly.
📏 Geometry Breakdown: Key Measurements in All Road Bikes
When cyclists speak of bike “geometry,” they refer to a precise interplay of measurements that define how a bicycle handles, feels, and performs. For all road bicycles, which must balance speed, comfort, and adaptability, geometry is especially critical. Below are the essential angles and dimensions you need to understand when comparing or purchasing an all-road frame.
1. Stack and Reach: The Foundation of Fit
-
Stack is the vertical height from the bottom bracket to the top of the head tube.
-
Reach is the horizontal distance from the bottom bracket to the same point.
These two values define the rider’s posture. A long reach with a low stack creates a more aggressive, race-oriented position. A shorter reach and taller stack promotes upright comfort—ideal for endurance and all-road riders spending hours in the saddle.
📌 Example: The Tideace R301D features a moderate stack-to-reach ratio (Stack: 555mm / Reach: 385mm in size M), allowing a neutral fit that can be tuned with different stem lengths.
2. Head Tube Angle: Steering Precision
-
Head angle affects the responsiveness of steering.
-
Steeper angles (73–74°) = quick handling (classic road bikes)
-
Slacker angles (70–72°) = more stable on loose terrain (gravel and all-road)
-
Most all-road bikes adopt a 72–72.5° head angle, balancing agility with stability, especially when loaded with gear or descending on rougher roads.
3. Trail: The Hidden Hand of Handling
-
Trail is derived from head angle, fork rake, and tire size—it impacts how "stable" or "lively" the steering feels.
-
Short trail (<60mm) = twitchy, quick
-
Long trail (>65mm) = more stable, especially off-road
-
All-road bikes usually feature 60–66mm of trail, allowing smooth control at both high speed and over uneven surfaces.
4. Seat Tube Angle: Power & Comfort
-
A typical seat tube angle for road and all-road bikes ranges from 72.5–74°.
-
Steeper angles position you over the pedals, increasing efficiency. A slightly slacker seat tube (e.g., 72.5°) offers comfort and better weight distribution for longer rides.
5. Bottom Bracket Drop: Stability vs. Pedal Clearance
-
BB drop is the vertical distance from the wheel axles to the bottom bracket.
-
A lower BB (70–75mm drop) improves cornering and stability.
-
A higher BB (60–65mm drop) provides more clearance on rugged terrain.
-
Many all-road bikes opt for a 72mm BB drop, offering a sweet spot between stability and obstacle clearance.
6. Chainstay Length: Speed or Comfort
-
Shorter stays (410–420mm) = snappier acceleration, road feel.
-
Longer stays (430–440mm) = smoother ride, better weight balance with bags or wide tires.
For example, the R301D has 430mm chainstays, supporting 700×38C tires while maintaining responsiveness.
✅ Summary Table: Geometry Ranges for Modern All-Road Bikes
| Geometry Parameter | Typical Range | All-Road Ideal (e.g., R301D) |
|---|---|---|
| Stack | 530–600 mm | 555 mm (M) |
| Reach | 370–400 mm | 385 mm (M) |
| Head Tube Angle | 71.5–73° | 72.5° |
| Trail | 60–66 mm | 63 mm |
| Seat Tube Angle | 72–74° | 73° |
| BB Drop | 68–75 mm | 72 mm |
| Chainstay Length | 420–440 mm | 430 mm |
| Tire Clearance | 32C–40C | up to 38C |
Choosing the right all road bicycle geometry is about more than just frame size. Understanding key parameters like stack, reach, head tube angle, and trail will help you find a bike that matches your body, your riding style, and your terrain. Whether you're commuting, adventuring, or exploring mixed surfaces, a geometry that suits you will transform your ride into a smoother, faster, and more enjoyable experience.
When in doubt, consult geometry charts, test ride different setups, and prioritize comfort alongside capability. The perfect all-road bike is out there—it just starts with the right geometry.
