TIDEACEBIKE
Model：FM-R053V rim brake road bike frame
Material：Toray T800+T1000
Size：XS/S/M/L/XL
Bottom Bracket：T47（86mm）
Cable：Full hidden internal cable routing
Maximum Tire clearance：700*32C（max）
Weight：980g+/-50g, fork 340g, seatpost 220g
Seatpost：Special 400mm lenght, offset 10mm
Headset：Top 1-1/2(52mm)- Down 1-1/2(52mm)
Fork Spec：100*9mm
Fork Diameter：28.6mm
Rear axle Spec：130*9mm
Brake：Rim Brake

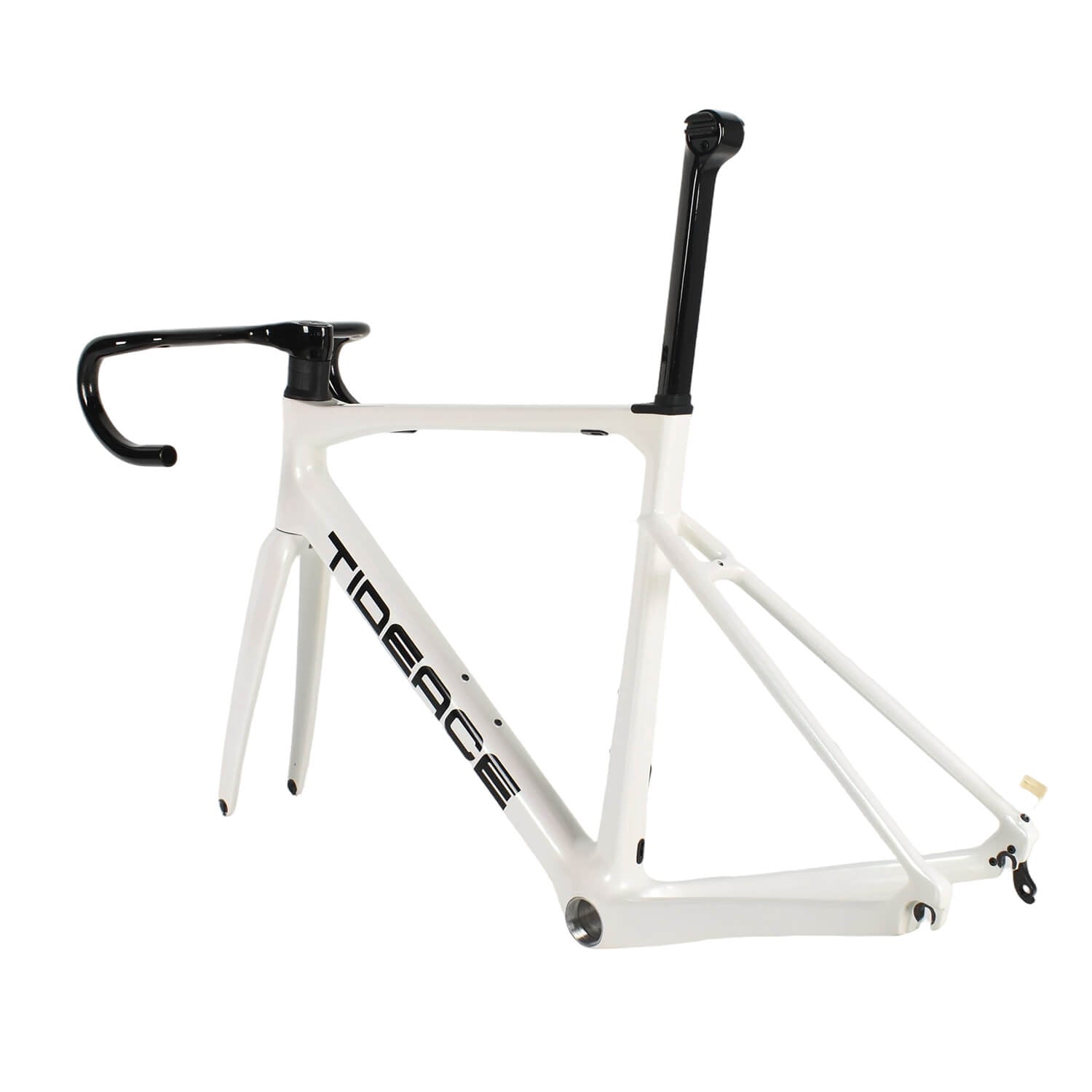

The FM-R053V Carbon Rim Brake Frame is designed for riders who still value the pure, responsive feel of a classic rim-brake road bike—lightweight, direct, and built for climbing. Constructed with a premium Toray T800 + T1000 carbon layup, the frame delivers a balanced combination of stiffness and compliance, making it ideal for fast weekend rides, hill-climb events, and long-distance training.
AERO DESIGN
Slice through the air with wind-cheating frame tubes for maximum speed.
Ultra-light
Super light weight, only about 980g for M size
Braking choice
Disc brake and V brake for choice
Hotspot
Description text for this hotspot
Max Tires
Fit for Max 700*32c tires
700*32C Rim Brake Bicycle Frames
Full Hidden Internal Cable Routing

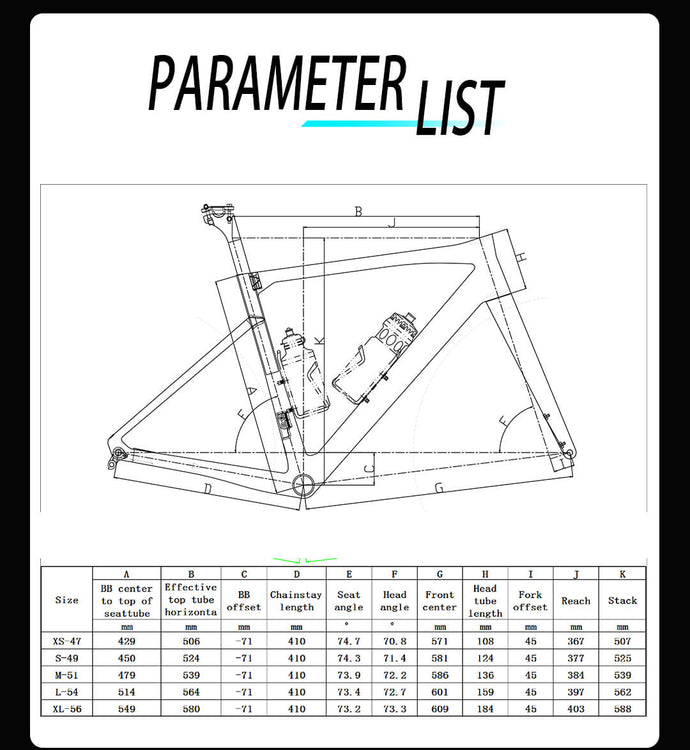

R053V Geometry
Available in XS to XL, the FM-R053V fits a wide range of riders seeking a premium rim-brake chassis—ideal for building a lightweight climbing bike or a classic race-style road setup. Choose from matte, glossy, or custom-paint options to create a bike that reflects your style.
Ultralight Carbon Road Bike Frame

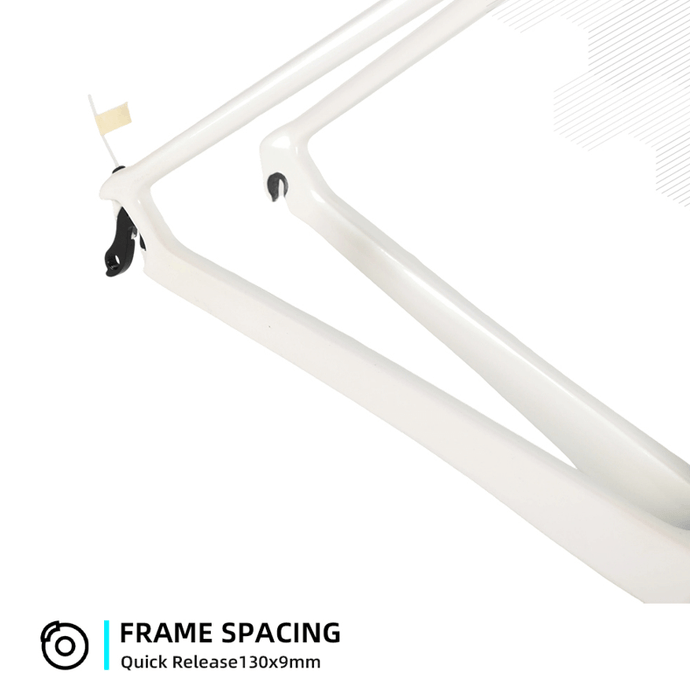

Weighing just 980g (±50g) with a 340g fork and a dedicated 220g seatpost, the FM-R053V focuses on one thing: efficient power transfer without unnecessary grams. The updated rim-brake design paired with a 130×9mm rear and 100×9mm front quick-release system keeps the bike ultra lightweight while maintaining reliable braking performance.

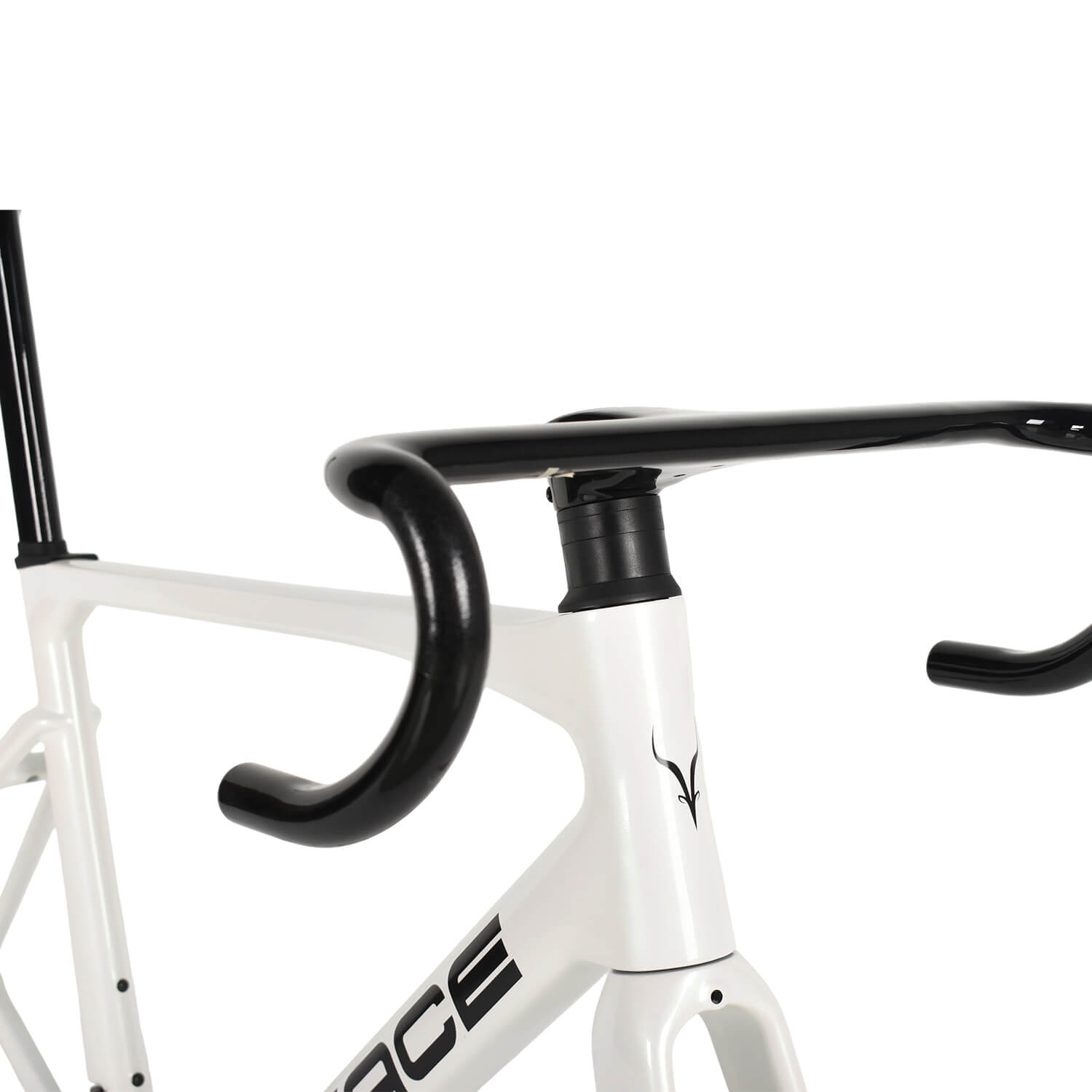

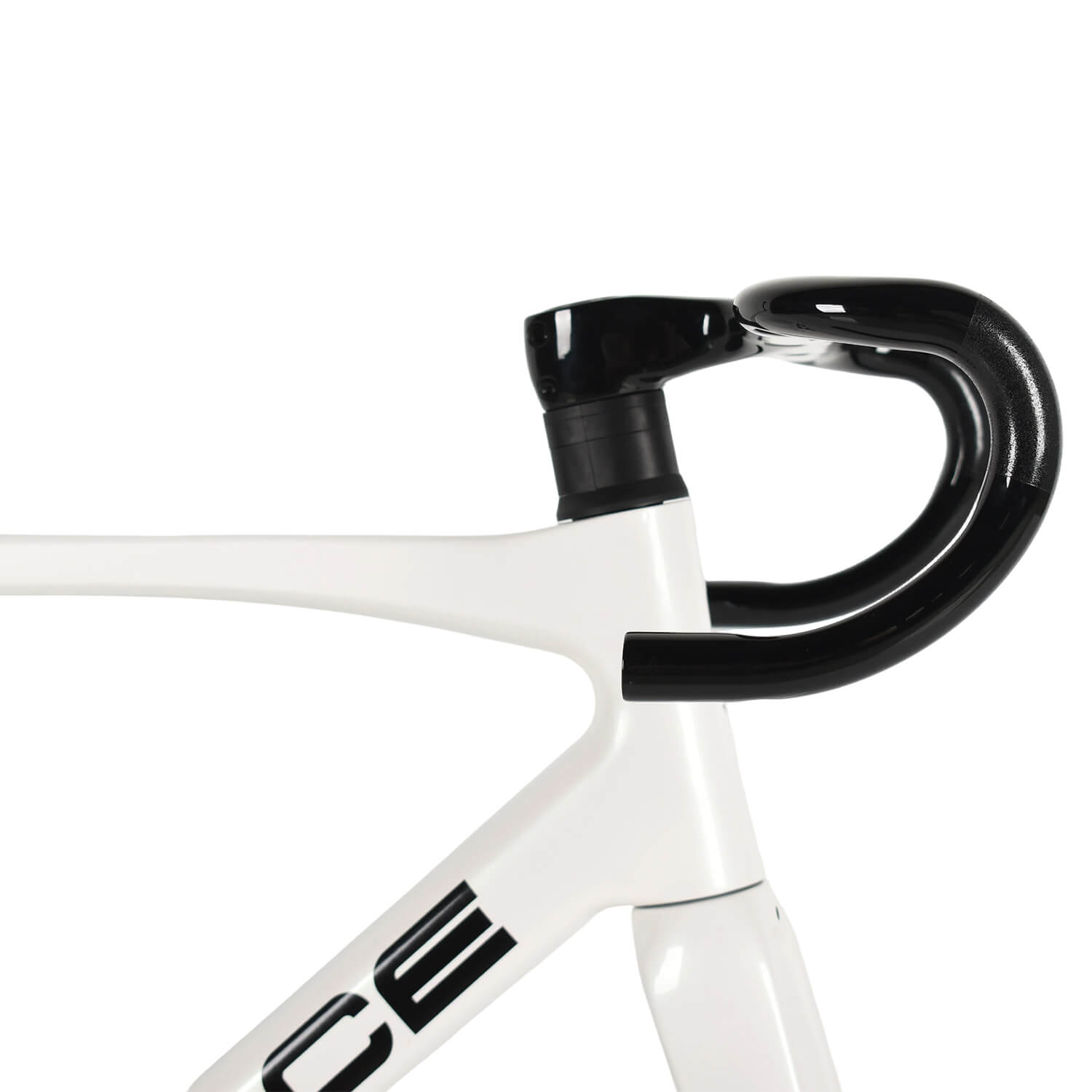

ONE-PIECE AERO HANDLEBAR
It achieves highly integrated 335g ultra-lightweight (420*90mm) and up to 16 specifications for a more scientific ergonomics designwhich can support the installation of other handlebar systems.
Handlebar Size: 380/400/420/440**90/100/110/120MM
Flexible tire compatibility

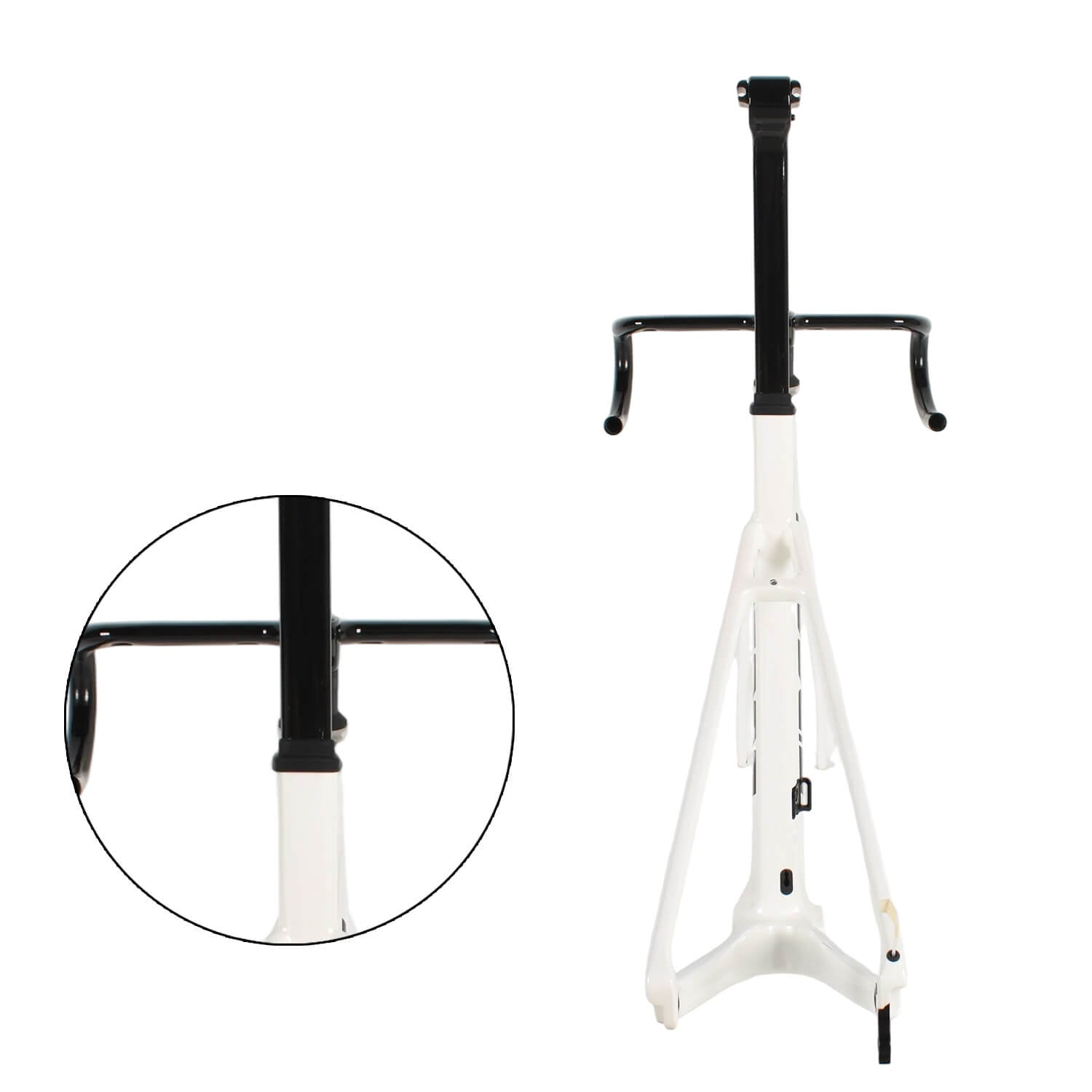

Featuring full hidden internal cable routing, a modern T47 (86mm) bottom bracket, and clearance for up to 700×32C tires, this frame blends traditional race handling with a clean, modern integration. The aero-shaped seatpost (400 mm, 10 mm offset), oversized 1-1/2" headset, and optimized tube shaping contribute to stable descending and confident cornering.

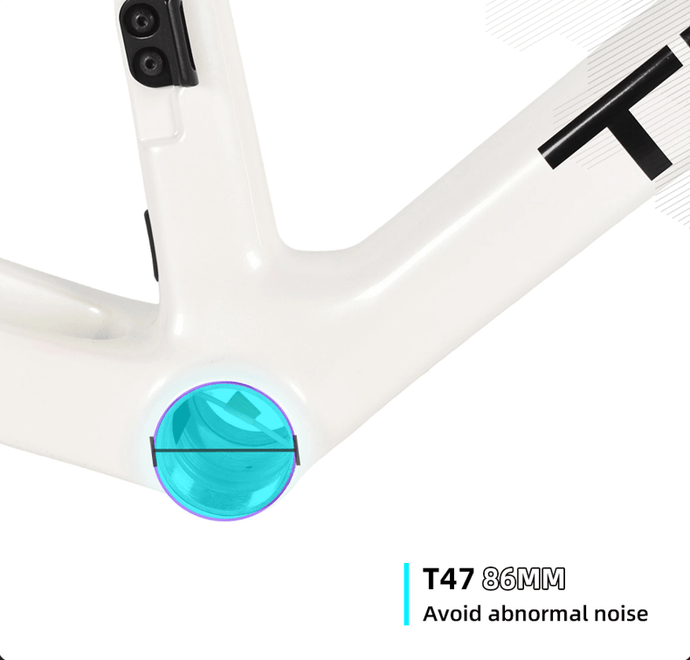

T47 - Bottom Bracket Press Fit, Threaded BB shell, compatible with Shimano/Sram
T47 bottom bracket is a modern threaded bottom bracket standard that blends the benefits of traditional BSA threading with the oversized stiffness of press-fit designs.
Rim Brake Braking System
A rim brake system is one of the most classic and lightweight braking structures used on road bicycles. Instead of acting on a disc rotor, rim brakes apply braking force directly to the wheel’s rim, creating friction that slows the bike down. This design has been trusted for decades in professional road racing due to its simplicity, low weight, and precise braking feel. We also have disc brack for choice, FM-R053D disc brake road bike frame.

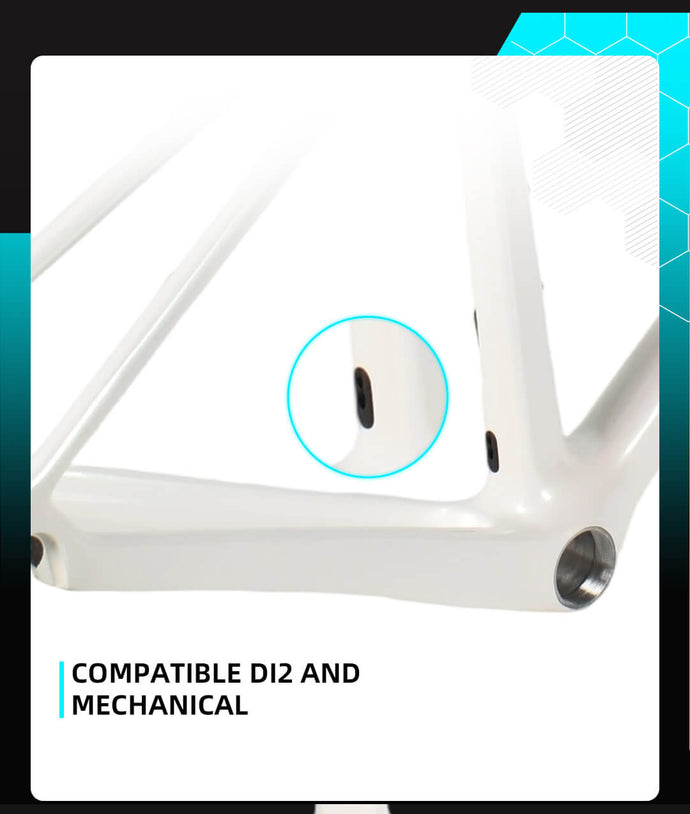

Compatible Di2
The frame is fully compatible with Shimano Di2 electronic shifting, offering riders a clean, precise, and modern drivetrain setup. All internal routing ports are designed to support electronic wire integration, ensuring that Di2 cables run smoothly through the frame, fork, and chainstays without exposed wiring.
