TIDEACEBIKE

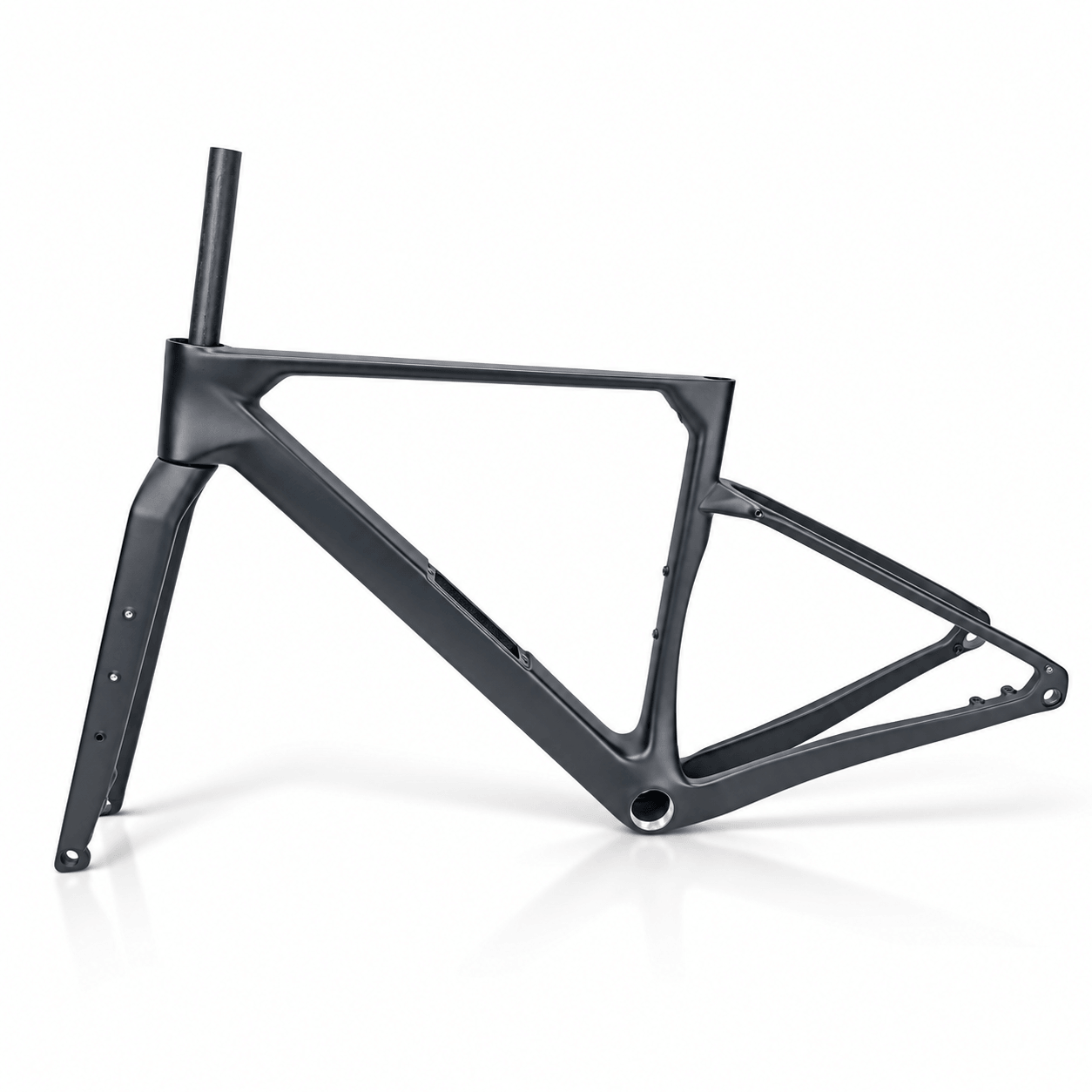

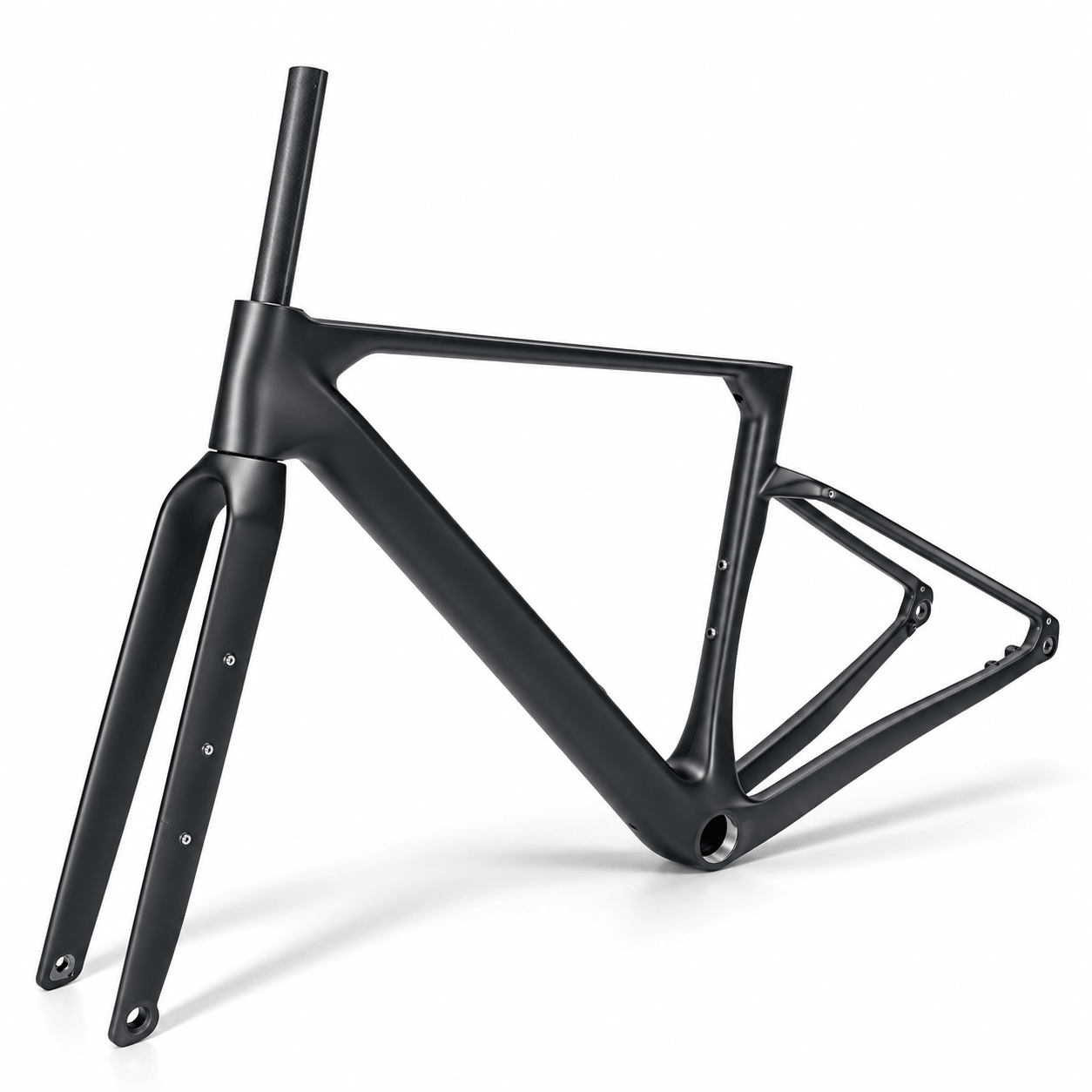

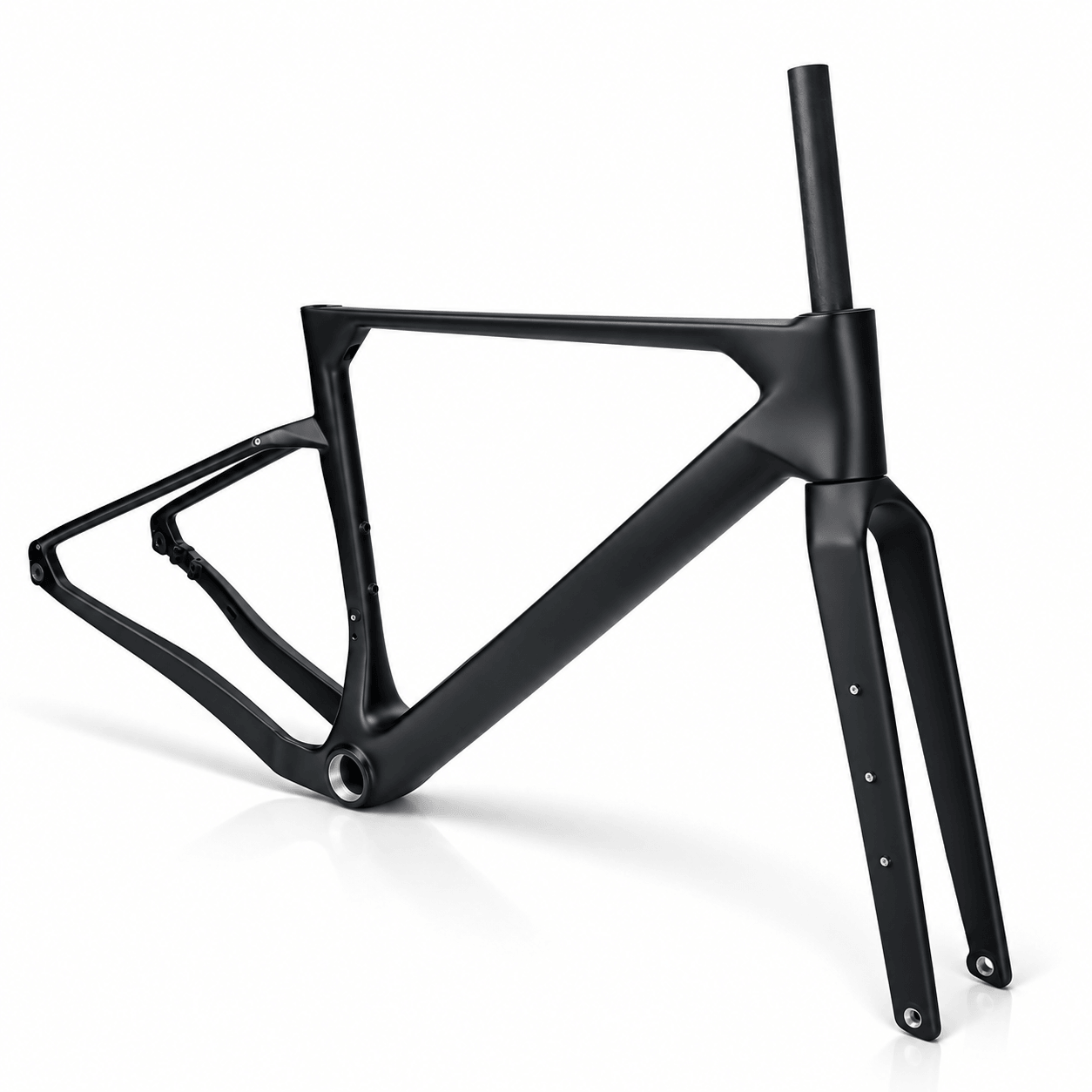

700*57C Carbon Gravel Bicycle Frameset GV-208
Material: Toray T1000 + T1100 Carbon Fiber
* Model Number: FM-GV208
* Frame Size: S / M / L / XL
* Seatpost: 27.2 mm
* Headset Size: 1-1/2” (52 mm) top and bottom
* Bottom Bracket: T47 threaded, shell width 85.5 mm
* Cable Routing: Fully hidden internal routing
* Brakes: Flat mount disc, 160 mm rotor
* Axle Spec: Rear 142×12 mm, Front 100×12 mm
* Rear Derailleur Hanger: UDH
* Maximum Tire Clearance: 700×57C or 29×2.25
* Compatible Drivetrains: Both Di2 (electronic) and mechanical
* Weight: Frame 1050 ± 50 g, Fork 450 ± 15 g
Drivetrain Compatibility: 1× drivetrain with up to 48T chainring; 2× drivetrain with 48/31T chainrings
Brake Rotor Compatibility: 140 mm front / 160 mm rear
Downtube Storage: Integrated downtube storage compartment for convenient on-the-go storage
57C Carbon Carbon Gravel Bike Frameset
Built with premium Toray T1000 and T1100 carbon fiber, the Tideacebike FM-GV208 combines lightweight construction, versatile tire clearance, and a clean, fully integrated design. Whether you're exploring remote gravel roads, tackling long-distance adventures, or building a fast all-road bike, this gravel bike frame gives you the freedom to create your ideal ride.
GV208
Tideace UDH Gravel Frame Full Carbon T1000 Max 700x57C or 29erx2.25 Tires Bicycle Cyclocross Frameset T47 Bottom Bracket
Tideace Carbon Gravel Bike Frames GV208
More Tire Clearance. More Routes to Explore.

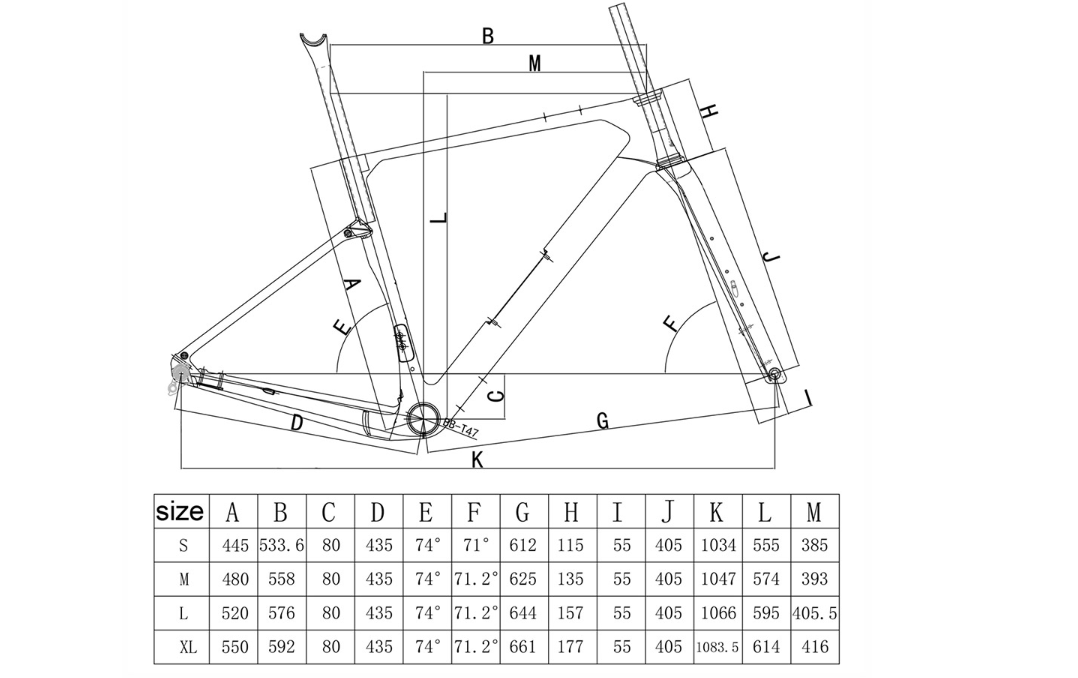

GV208 Geometry
Four Sizes. One Versatile Platform.
The FM-GV208 is available in four frame sizes: S, M, L, and XL, helping accommodate a range of rider heights and fit preferences.
Choosing the right frame size is essential for comfort, control, and efficient power transfer on long gravel rides.
Before ordering, check the FM-GV208 geometry chart and compare stack, reach, and other key measurements with your current bike or preferred riding position.
Available Sizes: S / M / L / XL
Carbon Gravel Frameset
By routing cables internally, the design minimizes visible cable clutter and complements the frame's refined carbon construction. It's an ideal foundation for riders looking to build a gravel bike with a minimalist aesthetic and integrated styling.
Create a setup that looks as purposeful as it rides.

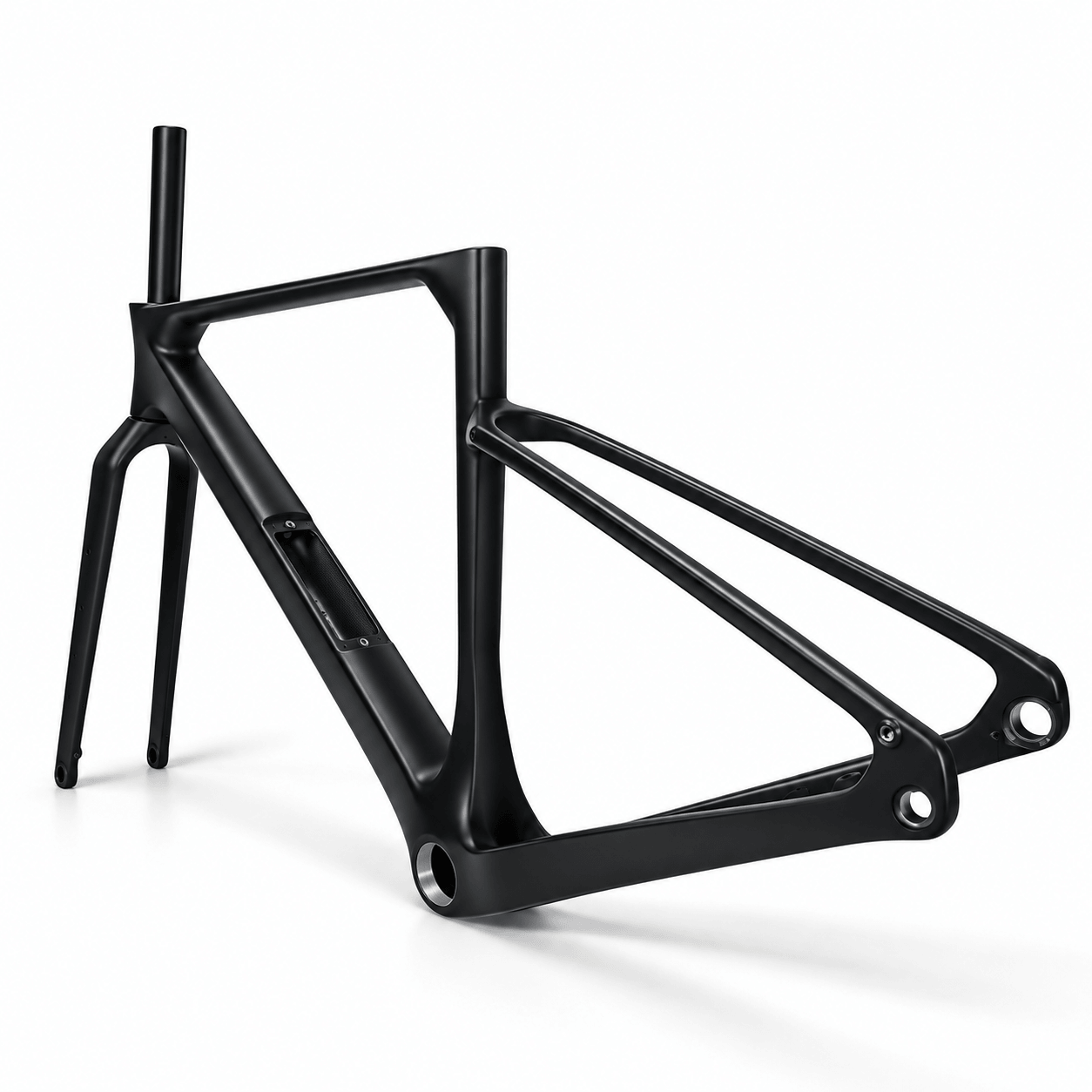

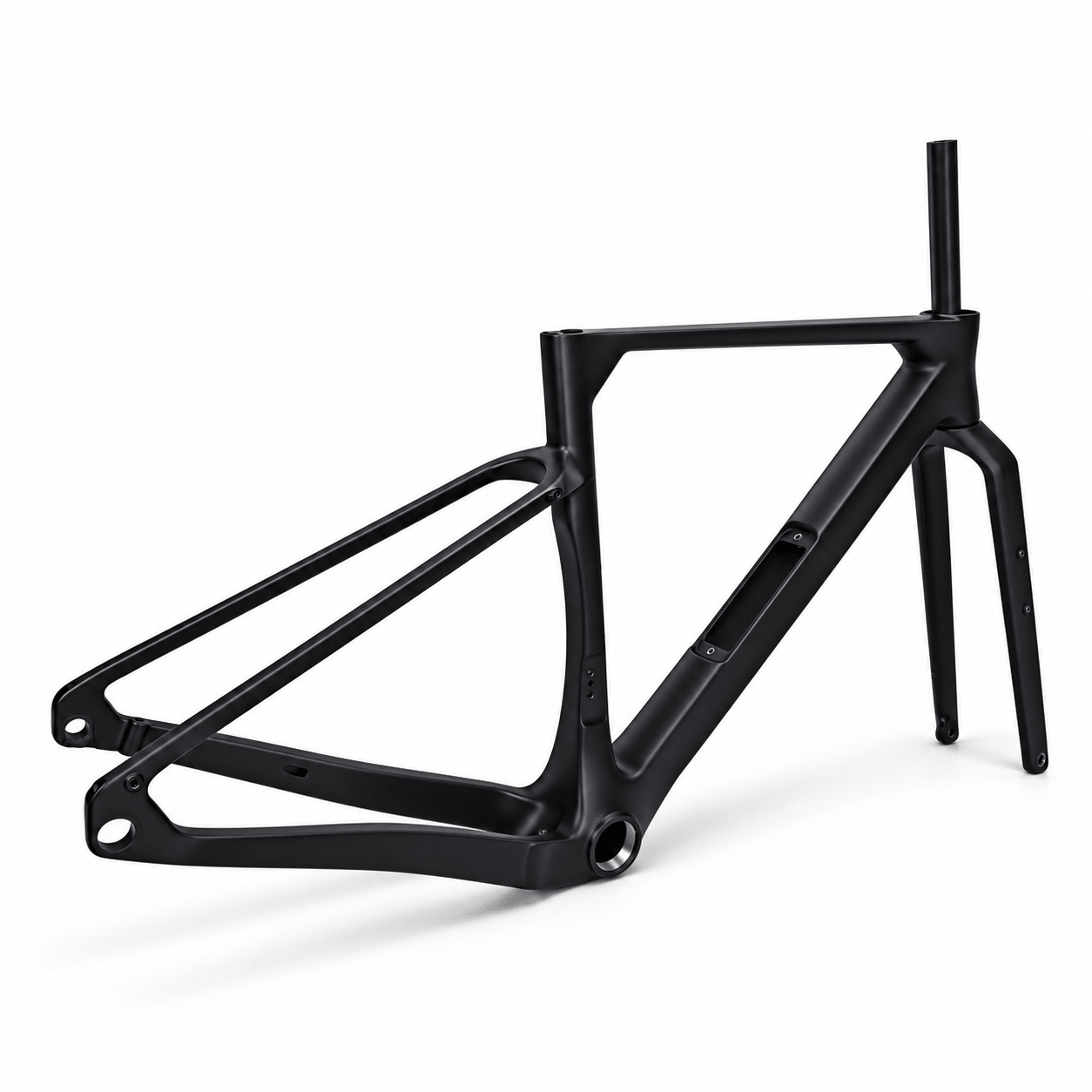

Downtube Storage Box
Features a downtube storage box, providing a convenient solution for carrying essential items on your gravel adventures. Keep small ride essentials organized and accessible without relying entirely on external bags.
Designed to complement the frame's clean lines, the storage compartment adds practical functionality to your gravel setup, making it ideal for long rides, bikepacking trips, and everyday exploration.
More storage. Less clutter. More adventure.
Headset
The "1-1/2" in a 1-1/2 and 1-1/2 headset refers to the diameter of the head tube (the part of the bicycle frame that the fork steerer tube fits into) and the down tube (the tube that goes from the head tube to the bottom bracket). A 1-1/2 and 1-1/2 headset is designed for use with a bicycle frame that has a head tube and down tube with a diameter of 1.5 inches.
12*142mm thru axle
Provide a clear starting point for selecting compatible components and planning your build.
Always verify the exact dimensions and compatibility of your selected components before assembly.
Seatpost 27.2mm standard
Support dropper seatpost: A dropper seatpost allows you to lower the seat from the handlebar remotely, which can be helpful for technical descents or when you need to put your foot down quickly.
Support Suspension Fork
This means the frame is designed to work with a suspension fork, which can help absorb bumps and vibrations on rough terrain.
T47 Bottom Bracket
The T47 bottom bracket is a newer bottom bracket standard that is becoming increasingly popular with custom frame builders and some larger frame manufacturers. It is a threaded standard that uses a 47mm diameter shell with threads on the inside. This allows for a larger bearing interface than traditional BSA threaded bottom brackets, which can lead to increased stiffness and better power transfer. T47 bottom brackets are also compatible with a wider range of cranksets than BSA bottom brackets.
Disc Brake System
160mm Disc Brake carbon road gravel bicycle frame.
Max Tires
Max Tire: 700*57C/29erx2.25'
