FM-CR068 Aerodynamic Road Racing Bike Frame
Product Details:
Model: Tideace ARES EVO CR068
Material: T800+T1000 carbon fiber
Size: XXS/XS/S/M/L/XL
Bottom Bracket: T47 (86mm)
Spacer: 5mm*1 pcs, 10mm*1 pcs, 20mm*1 pcs
Tyre: Max 700*32C
Frame Weight: Frame(1100g), Fork(440g), Seatpost(150g), Size S Painted excluded the metal part.
Frame(980g), Fork(420g), Seatpost(149g), Size S in raw material excluded the metal part.
Seatpost: Dedicated flat aero seatpost 400mm length
Headset； 1-1/2 - 1-1/2
Fork: 39.8mm, Fit hubs(12*100mm)
For fork steerer tube diameter: 28.6mm
Rear Axle: 12*142mm
Brake Type: Flat mount 140mm Disc rotor, it is possible to install a 160mm rotor using a conversion seat.
Handlebar size: Please leave us a message of the size you need.
Package included: frame, fork, seatpost, handlebar, clamp, headset and thru axle
FM-CR068
Aerodynamic Road Racing Bike Frame 700*32C
Aerodynamic Road Bike Frames ARES EVO
High-performance carbon road bike frames!
- Aerodynamic Molding: Slice through the air with wind-cheating frame tubes for maximum speed.
- Lightweight Carbon Fiber: Built for speed and efficiency, this frame is sure to shed precious seconds off your personal bests.
AERODYNAMIC DESIGN
Best Carbon Road Cycling frames CR08 combines aerodynamic engineering with comfort technology, creating an exceptionally swift, lightweight, and smooth cycling experience.
Ultra-light
T1000 Carbon Fiber, Ultra-light weight.
Suitable for all riders
Every cyclist, irrespective of their gender, physique, cycling technique, or skill level, is entitled to an outstanding bicycle.
Internal routing design
The internal routing design features a well-organized and efficient wiring system that runs through the upper tube of the frame head.
CR068 Aero Road Bike Frame
Disc Brake UDH Rear Hanger T47

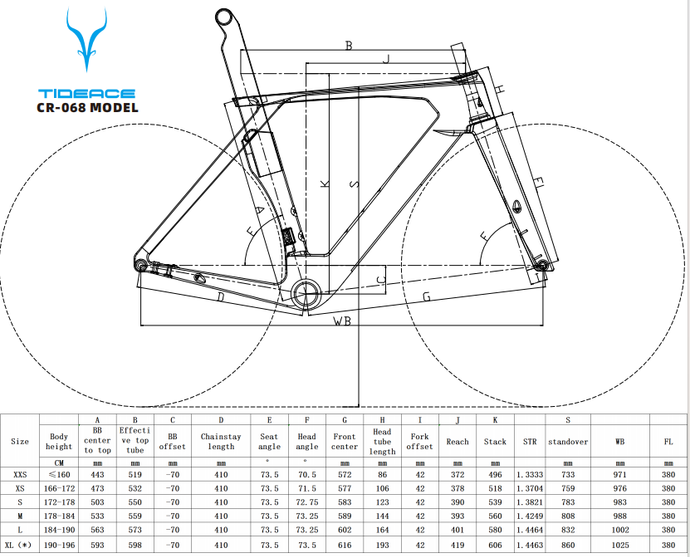

CR068 Geometry
China Carbon Road Bicycle Frames CR068 is a top-of-the-line, performance-focused frame designed for cycling enthusiasts seeking an exceptional riding experience. Tideace is committed to optimizing the product manufacturing process. Using EPS technology and years of accumulated experience, it can make the inner wall of the frame smooth and free of carbon yarn wrinkles, thereby achieving the purpose of making the frame lighter without losing rigidity.
Aerodynamic Road Bike Frames ARES EVO
ARES road racing bike frameset is constructed from premium carbon fiber, providing a lightweight yet robust structure, features a sleek, aerodynamic profile, is compatible with a wide range of groupsets, including DI2 and mechanical options, incorporates internal cable routing for a clean.
Integrated Handlebar
HB008 - carbon fiber integrated windbreaker handlebar, The hidden inner cable routing reduces a lot of wind resistance and the ergonomic design makes riding more comfortable.
Handlebar Size: 380/400/420/440*90/100/110/120MM
Newest Road Model
Pre-R&D concept-CFD aerodynamic design simulation-carbon structure R&D
It took 13 months to Well-designed.
ARES EVO Features
Reinforce the connection between the rear seat stay and the top tube for higher strength.
Unique down tube design, narrow at the top and wide at the bottom, meets aerodynamic needs while increasing the beauty of the frame.
Mid-tube spoiler hole design enhances aerodynamic performance.
Aerodynamic head tube design reduces wind resistance.
Flexible tire compatibility
Provides space for tires up to 700*32C, allowing you to tackle various terrains from smooth roads to gentle gravel with confidence. 12x100mm Thru Axle.
T47 86mm Bottom Bracket
The T47 bottom bracket is a type of bottom bracket that is designed to be both creak-free and stiff.
Disc Brake Braking System
140mm Disc Brake carbon road bicycle frame, it is possible to install a 160mm rotor using a convension seat.
EPS Technology
FM-CR068 carbon road bike frame is made by T1000 Toray carbon fiber with EPS technology. Crafted from premium T1000 carbon fiber, this carbon fiber frameset delivers both strength and durability while maintaining a remarkably low weight.
CR068 Gallery
